30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure

Product Categories
Anping Hengbao hardware wire mesh products factory
Contact Now

30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure

Brand Name : Yuntong

Model Number : YT-ZM2040

Certification : CE,SGS

Place of Origin : China

MOQ : 1 Square Meter

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram,Paypal

Supply Ability : 2000 square meters per week

Delivery Time : 5-8 work days after receiving the advance payment

Packaging Details : Plastic film inside,wooden case outside

Product name : 30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure

Cable Structure : 7*7,7*19,1*19

Mesh Type : Knotted Type

Steel grade : AISI 304/316/316L

Angle : 60 degree or 90 degree

Mesh Aperture : 25x25mm,30x30mm,50x50mm,60x60mm

Rope Diameter : 1.2mm, 2.0mm,2.4mm,3.0mm,4.0mm

Application : Zoo enclosure ,Protecting mesh,Animal cages,bird wire mesh

Contact Now

Diamond Strongest Type Tend Stainless Steel Knotted Ss Rope Cable Mesh

Knotted Ss Rope Cable Mesh Description:

Knotted Ss Rope Cable Mesh is a type of woven mesh with cable construction of 7 × 7 or 7 × 19. With flat surface and aesthetic appearance, knotted cable can be used in various applications such as animal cage, aviary netting, security fencing and decoration.

Giraffe Cage Mesh
Material Rope Diameter Mesh Aperture Normal Breal(lbs)
SS 304/316/316L 1/8 4'' x 4'' 1600
SS 304/316/316L 3/32 4'' x 4'' 92

Parrot Cage Mesh

Material

Cable Diameter

Mesh Eye Size

Normal Break(lbs)

SS 304/316/316L

5/64''

2'' x 2''

676

SS 304/316/316L

1/16''

2'' x 2''

480

SS 304/316/316L

1/16''

1-1/2 '' x 1-1/2 ''

480

SS 304/316/316L

1/16''

1'' x 1''

480

SS 304/316/316L

3/64''

1'' x 1''

270

Monkey Cage Mesh

Material

Cable Diameter

Mesh Eye Size

Normal Break(lbs)

SS 304/316/316L

3/32''

3'' x 3''

920

SS 304/316/316L

3/32''

2'' x 2''

920

SS 304/316/316L

5/64''

2'' x 2''

676

SS 304/316/316L

1/16''

1-1/2 '' x 1-1/2 ''

480

Tiger Cage Mesh

Material

Cable Diameter

Mesh Eye Size

Normal Break(lbs)

SS 304/316/316L

1/8''

4'' x 4''

1600

SS 304/316/316L

1/8''

3'' x 3''

1600

SS 304/316/316L

3/32''

3'' x 3''

920

SS 304/316/316L

3/32''

2'' x 2''

920

Knotted Ss Rope Cable Mesh Specifications :

  • Mesh Hole Shape : diamond.
  • Mesh size : width: 20 mm to 120 mm; height: 20 mm to 120 mm.
  • SS Wire Rope Diameter : 1/8", 3/32", 5/64", 1/16" and 3/64".
  • Mesh Aperture : 1" × 1", 1-1/2" × 1-1/2", 2" × 2", 3" × 3" and 4" × 4".
  • Ss Wire Rope Structure : 7 × 7 (1.5 mm, 2 mm or 2.5 mm), 7 × 19 (3 mm, 4 mm).
  • Standard mesh angle : 90°. You can choose other angles according to your requirements.
  • Material : stainless steel AISI 304, 304L, 316 or 316L. (For aesthetic appearance, we also can make copper and brass cable mesh).

Mesh Type:​

As most articles on stainless steel used in zoo fence start out, it is manufactured from two types of stainless steel rope mesh: knotted ss rope mesh and ferrule type ss rope mesh as shown in the following picture:

  • Square cable mesh.
  • Knotted cable mesh.
  • Ferrule type cable mesh.
  • Anti-theft backpack protector.

Ferruled Type Knotted Ss Rope Cable Mesh

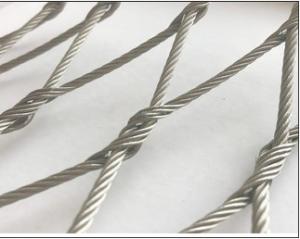

 Knotted Type Knotted Ss Rope Cable Mesh
30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure 30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure

Mesh Aperture Details:

  • Mesh opening is the mesh hole size, that is the distance from knot center to knot center.

  • Pure hand-woven. Every knotting crossing twice by hand, ensuring the hole never variant.

  • Stainless steel wire rope mesh opening has diverse specifications.

  • No matter large or small, our custom stainless steel wire rope mesh size can be very suited for your design.

Mesh Aperture Direction:

There are two kinds mesh directions:Horizontal and Vertical.

Knotted Ss Rope Cable Mesh Different Styles Design:

30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure

Packaging And Delivery:

  • Packing:Plastic foam and Water-proof Cloth for inter packing ,Fumigated wooden cases for outer packing.

  • Delivery:Usually it is by air or by express(DHL,TNT,EMS,FedEx)

  • Lead time:The order could be arranged within 24hours, lead time is between 7-30 days depending on the quantum of order.

Knotted Ss Rope Cable Mesh Applications:

Our Knotted Ss Rope Cable Mesh is widely used as ceilings, banister fillings, stair protections, mesh fence and so on.

30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure

What is the features of the Knotted Ss Rope Cable Mesh?

  • Light weight, soft but strong
  • Service life more than 30 years
  • Soft to the touch, can't hurt hands.
  • Excellent flexibility for tough installations.
  • Material group: AISI 304, 304 L, 316, 316L
  • Made of high quality stainless steel wire rope
  • Environmental degradation resistant, say, corrosion, ultraviolet

30x30mm 2.0mm Stainless Steel Wire Rope Mesh For Zoo Enclosure
